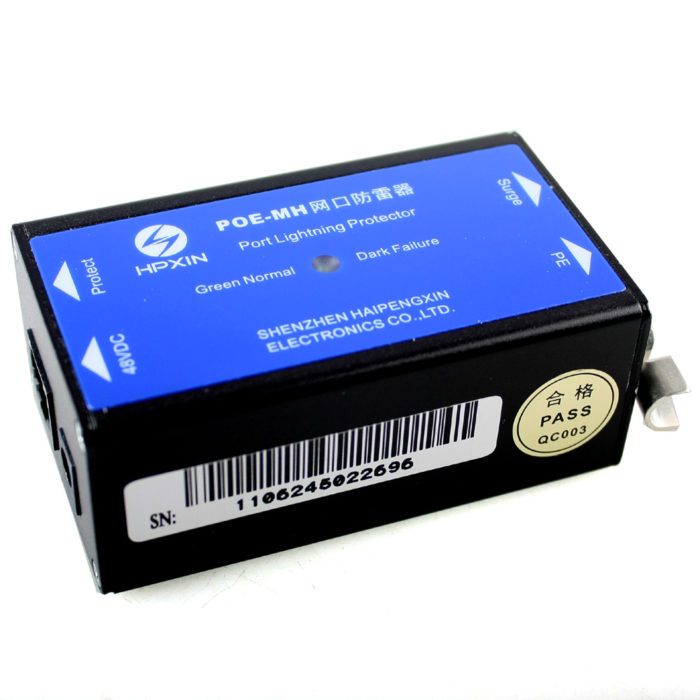

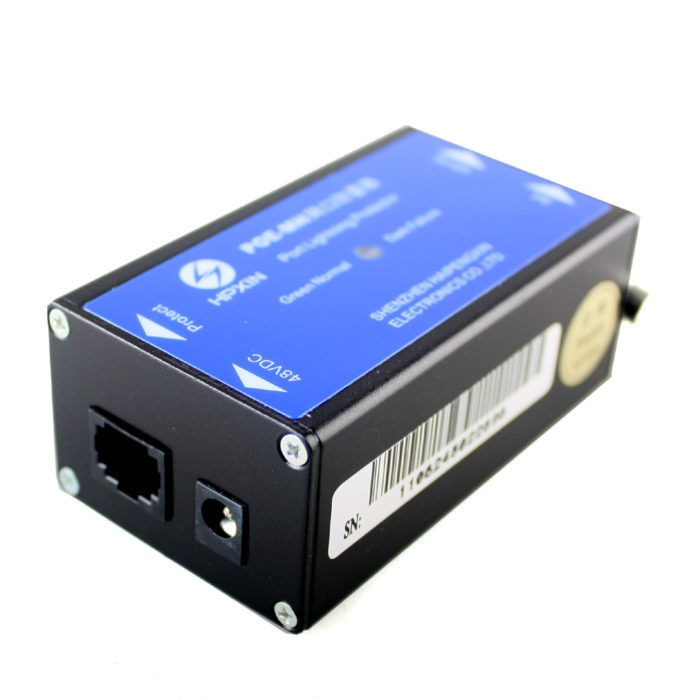

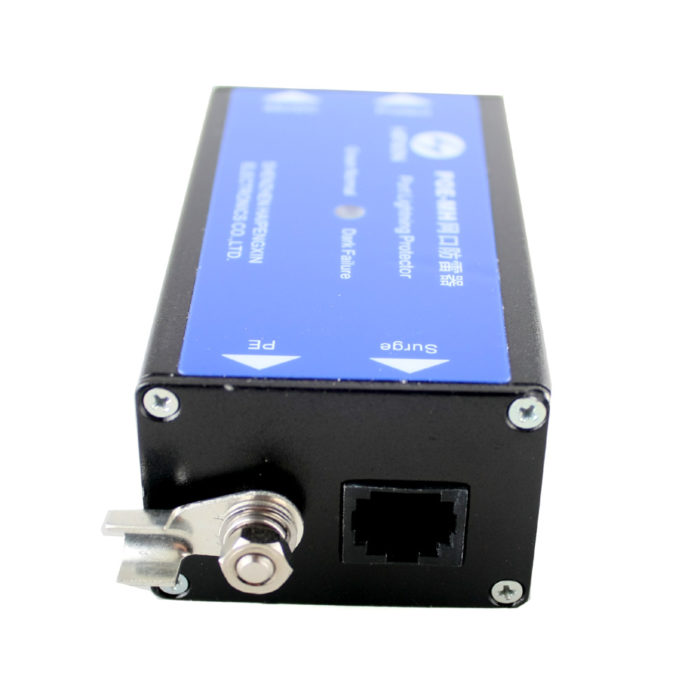

New Original Protection Devices POE-MH Port Lighting Protector for HPXIN 48V POE
$35.98 $19.99
SKU:LAY966
Describe:
model: POE-MH
i.Product Description
This series is designed for POE Ethernet systems and is suitable to install at the interface between LPZ1 and LPZ3 of the lightning protection area. It is with two-grade protection and can protect the network device from damages of over-voltage and over-current caused by the lightning thunder and industry interference. It is widely applied to protect wireless net bridge device.
2. Technical Parameters
Item Technical Parameters
Product model POE-MH
Signal Protection port 1?RJ45?
Rating working voltage 1.4V
Nominal discharge current-In(8/20s) 2.5kA
Voltage protection level-Up Line-Line
Line-PE 300V
Power Rating working voltage 48V
Maximum working voltage 60V
Nominal discharge current-In(8/20s) 5kA
Voltage protection level-Up Line-Line 150V
Line-PE 300V
Transmission frequency 100Mbps
Shell fire-retardant grade UL94V-0
Degrees of protection provided by enclosure IP20
Working indicator Light on-normal; light off-failure
3. Dimension drawing
